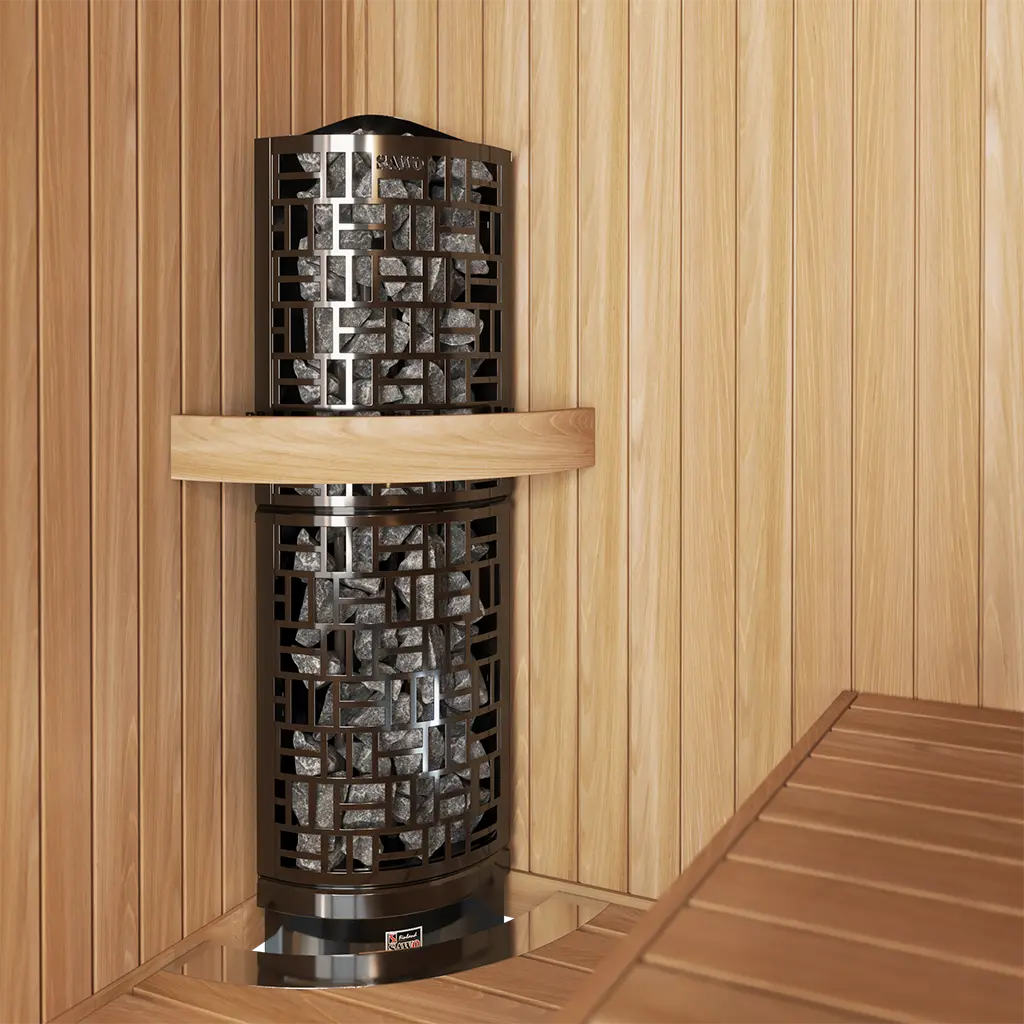

SAWO30 Corner Black NS

The SAWO30 Corner Black is designed for sauna layouts where space is at a premium. Like all Tower heaters, its height ensures it delivers evenly distributed heat, from bottom to top. The SAWO30 Corner also comes with a removable stone spacer, which offers two setup options of (1) faster heating, energy efficiency, and a hotter sauna with the spacer, or (2) room for more stones to generate more steam, milder temperature, and energy savings in a commercial setup without the spacer.

» Power range: 4.5 – 12.0kW
» Available controls: Saunova/Innova (NS)
» Black metal casing
» Removable upper half for easier loading of stones
» Removable stone spacer

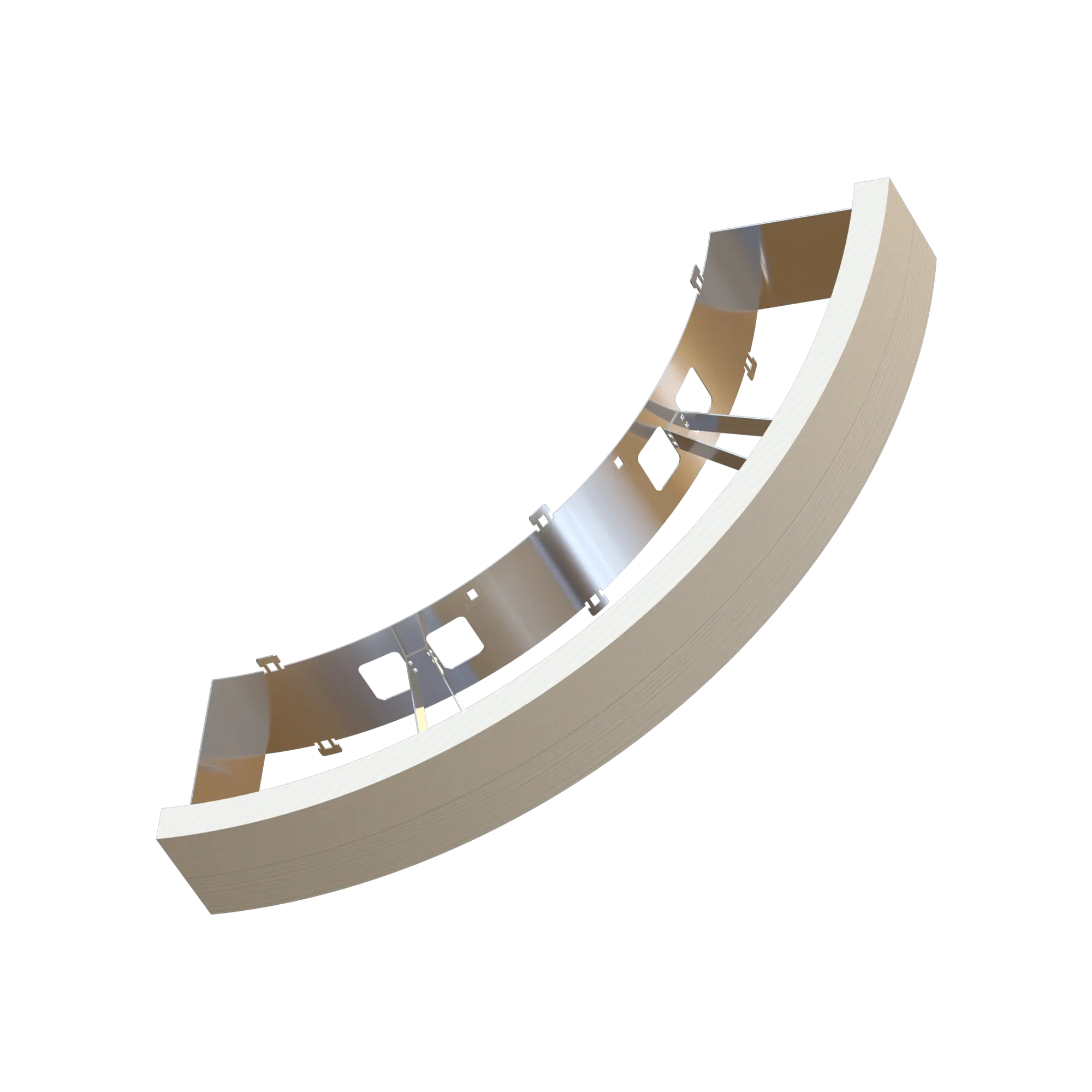

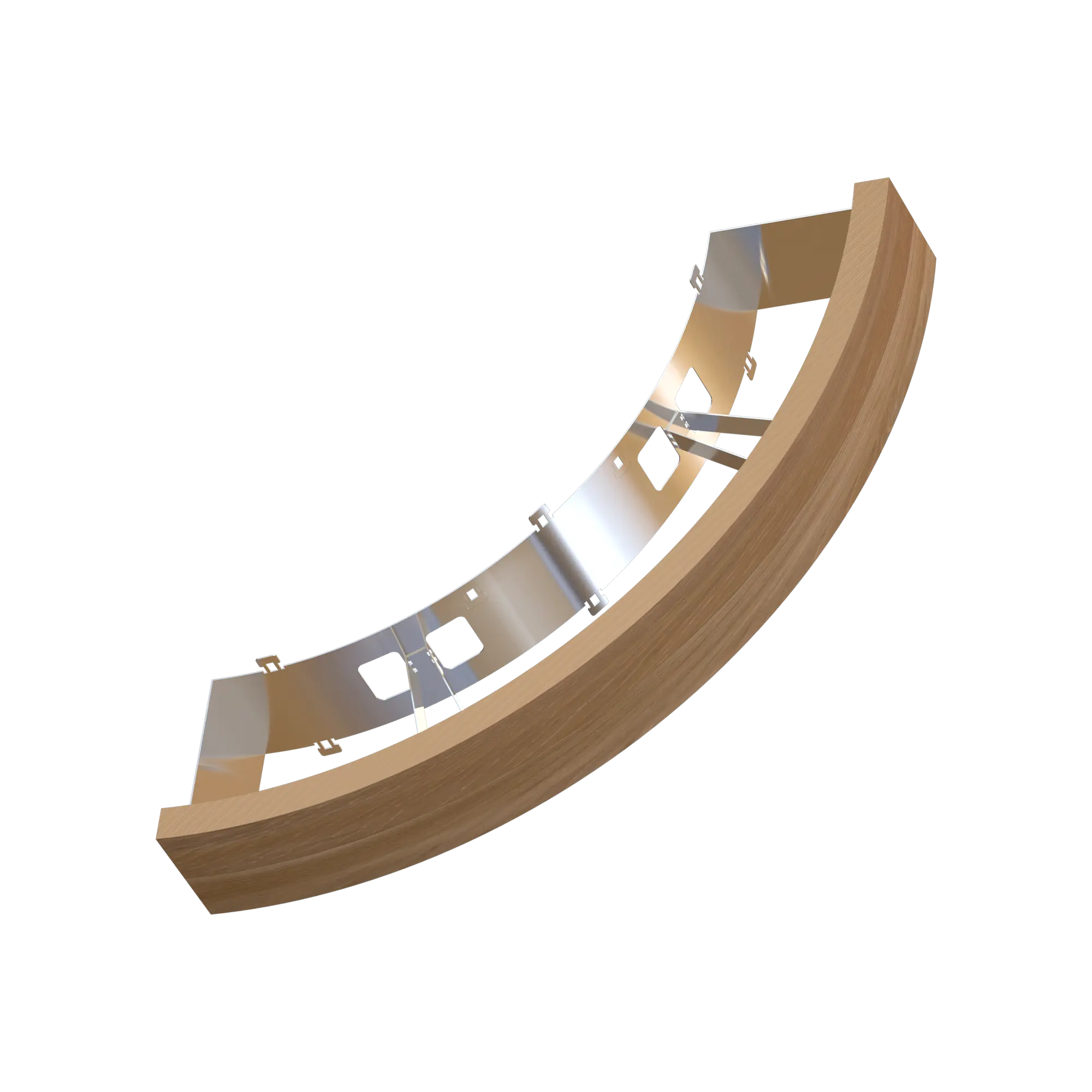

» Optional heater guard

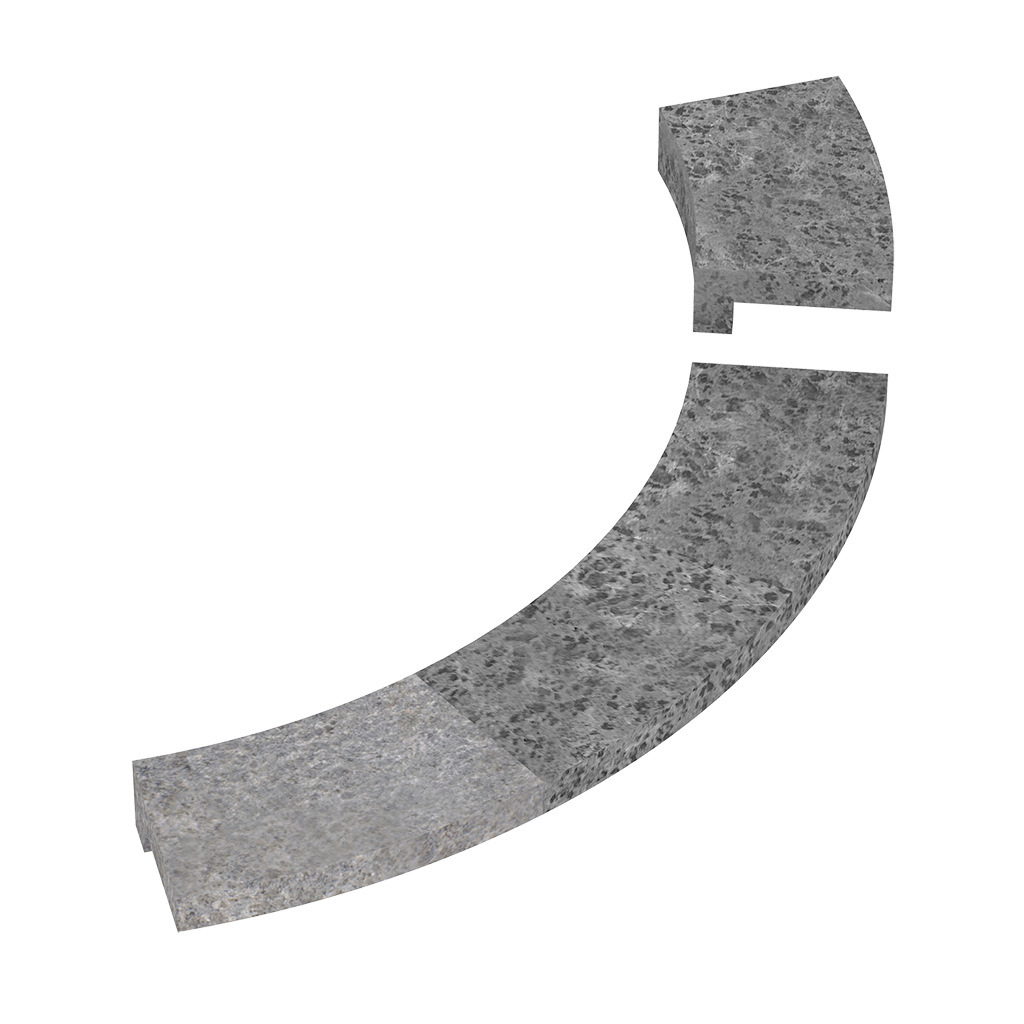

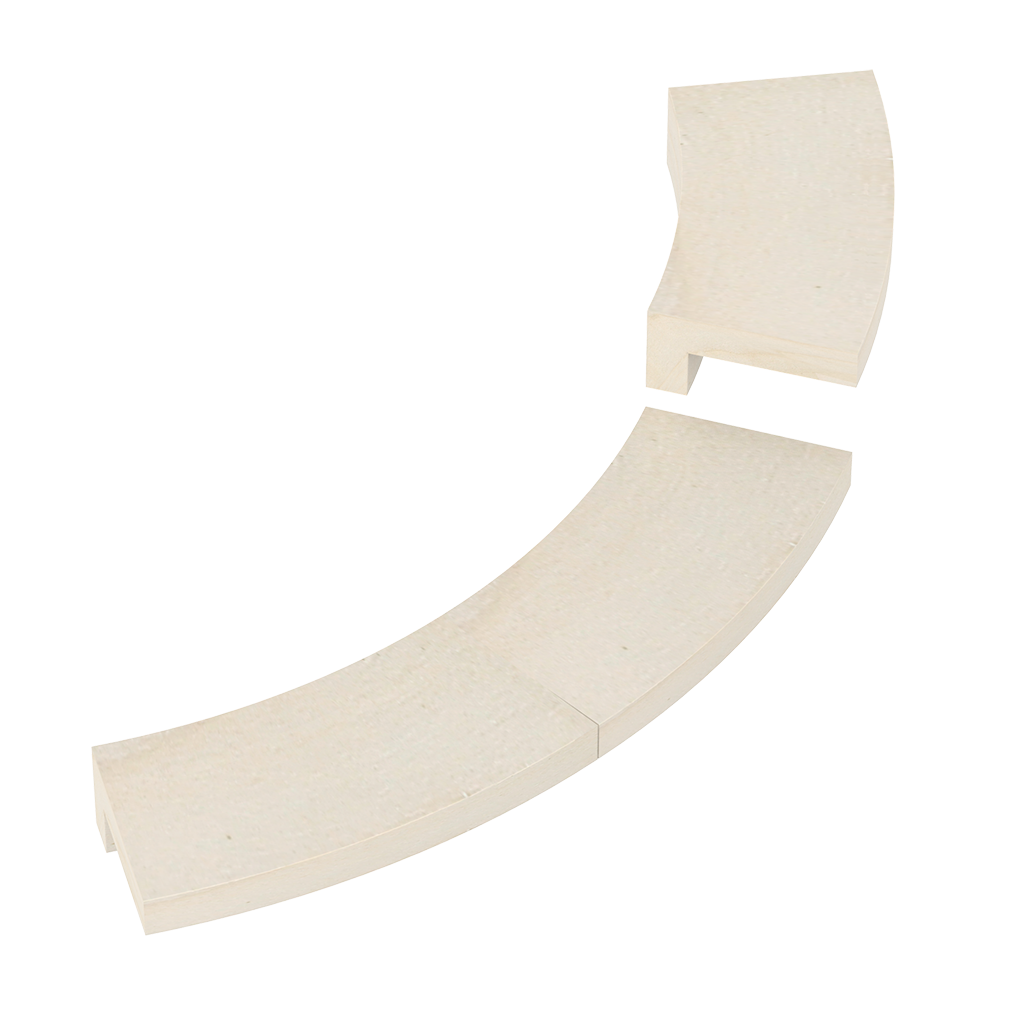

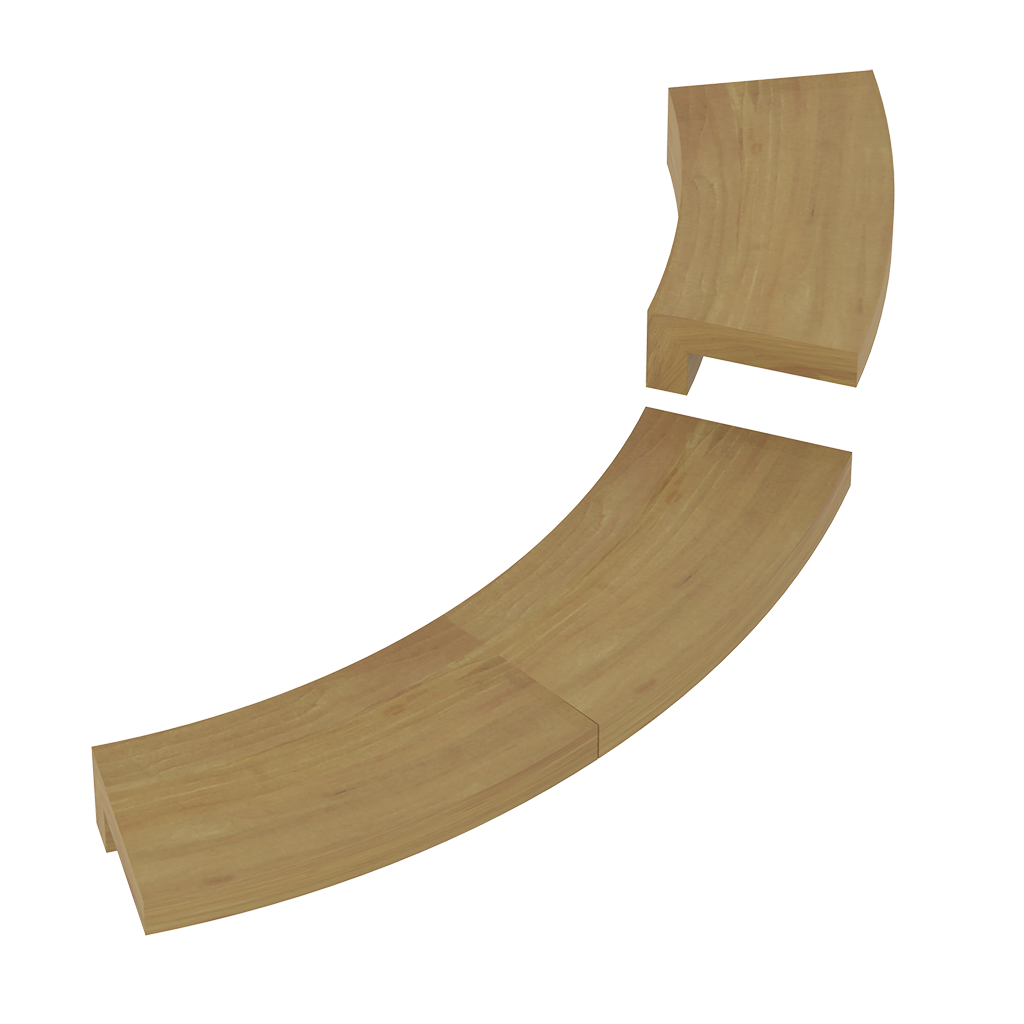

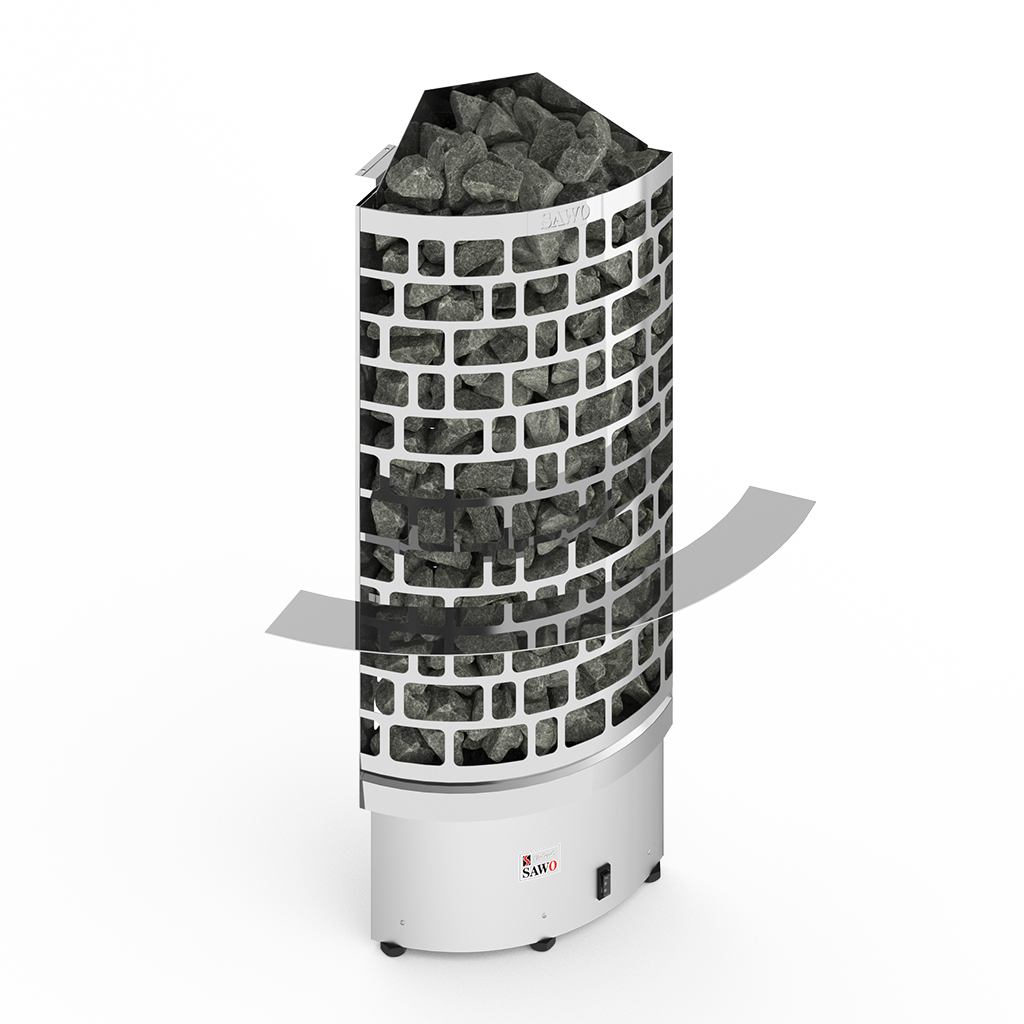

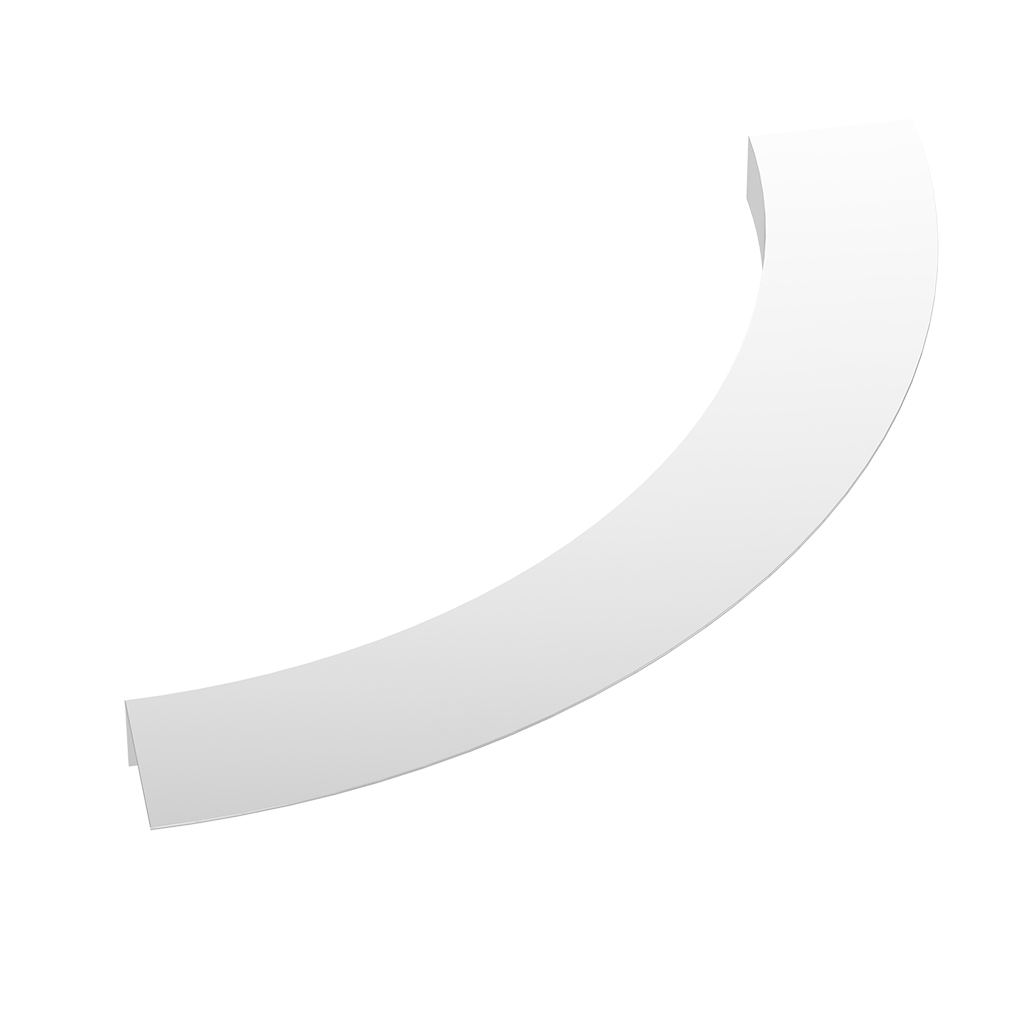

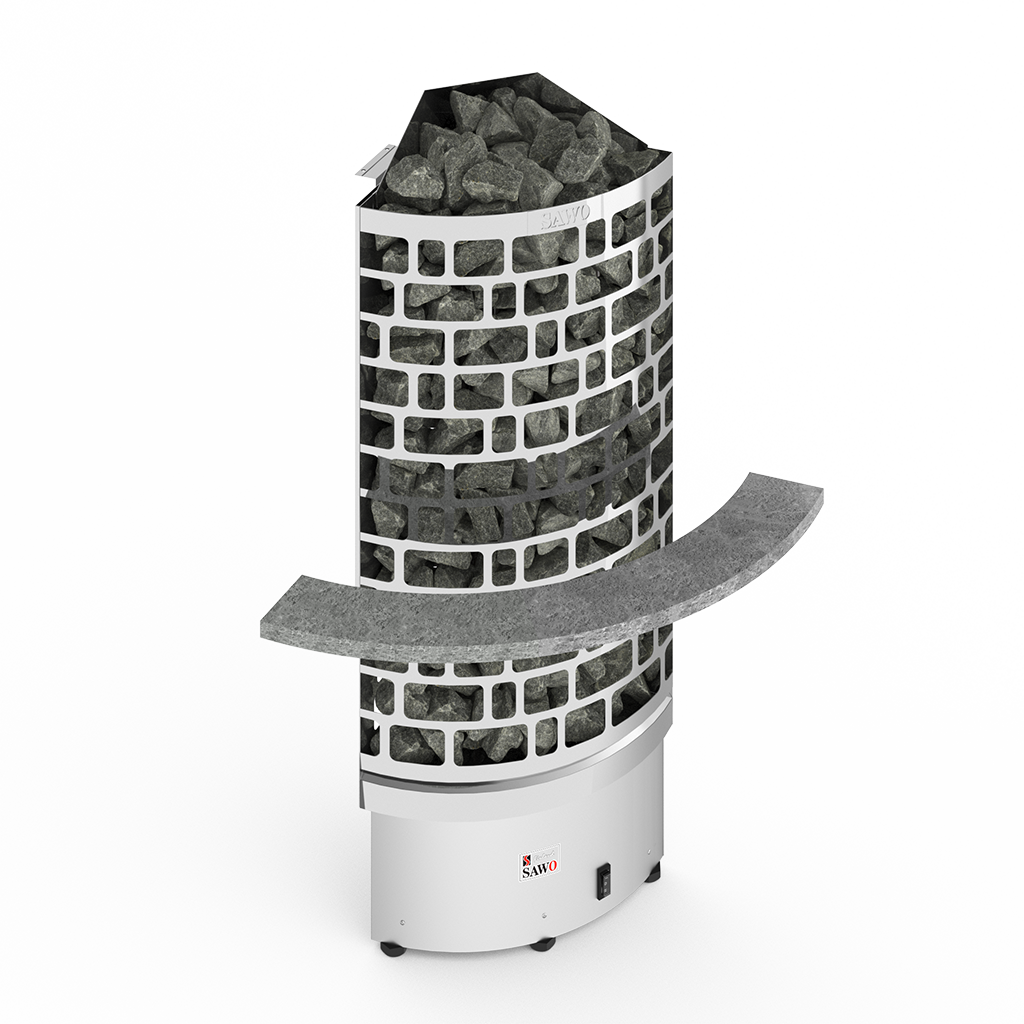

» Optional integration collar

Technical Data

Heater ModelkWSauna Room
min. (m3) max.
Size of Heater (mm)
Length Width Height
Stones (kg)
w/o Stone Spacer
Stones (kg)
with Stone Spacer
Minimum Safety Distances
A | B
SW3-45NS-CNR-BL-P-C4.53 – 6300 x 300 x 138070451001900
SW3-60NS-BL-P-C6.05 – 8300 x 300 x 138070451001900
SW6-90NS-CNR-BL-P-C9.08 – 15415 x 415 x 1380105801001900
SW6-120NS-CNR-BL-P12.011 – 18415 x 415 x 1380105801001900

Safety Features

Energy Efficiency
