Heaterking Corner NS SAWO Inc

Power rating from 3.5 – 12kW

Heaterking Corner NS

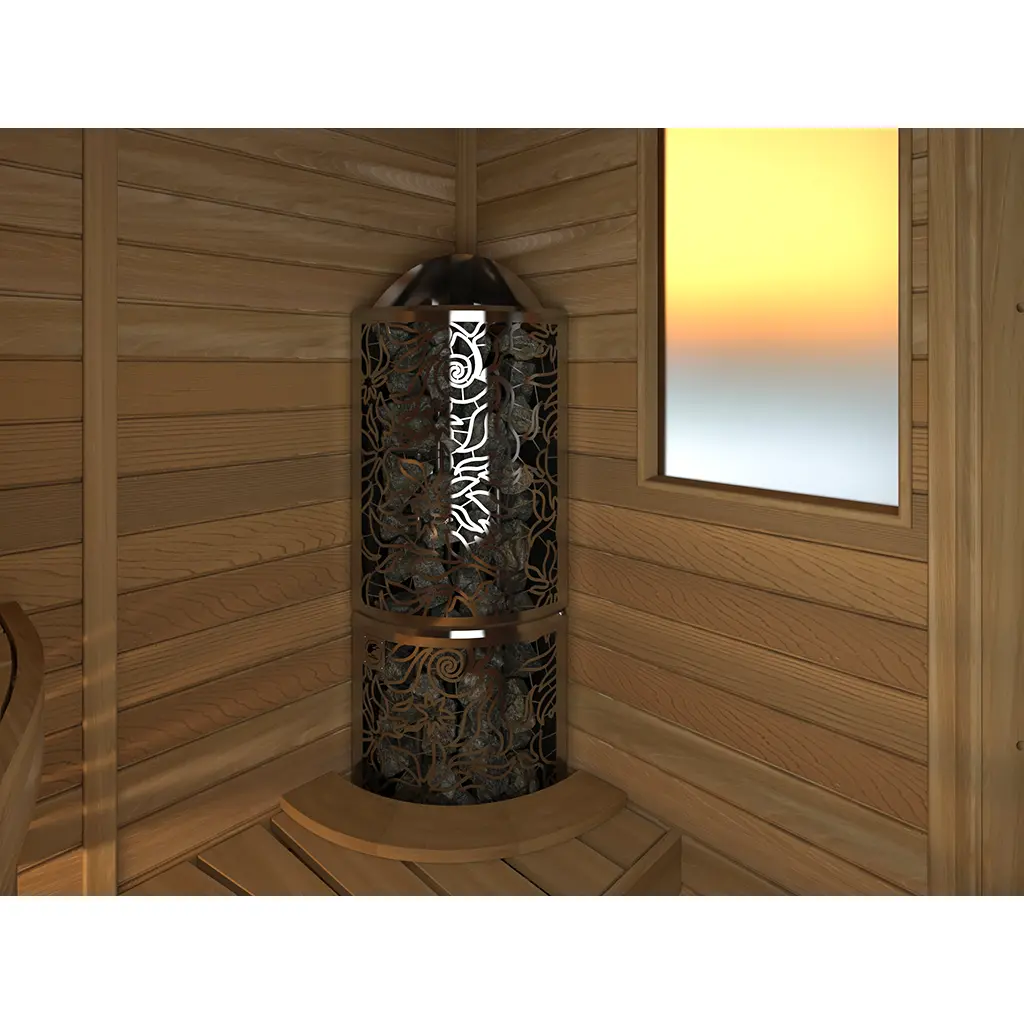

The Heaterking Corner heater by Stefan Lindfors delivers king-size heat while saving sauna space. Its impressive height enables it to hold a large amount of stones, generating consistent, enveloping warmth. Bathers can enjoy either smooth or sharp and dry heat by throwing water either onto the bottom or the top of the pillar. Like all Heaterking models, the corner heater’s unique Junglefire-pattern stainless steel casing imbues any sauna room with bold elegance.

» Power range: 3.5 – 12.0kW

» Available controls: Saunova/Innova (NS)
» Junglefire-pattern stainless steel casing
» Stone spacer to prolong the life span of heating elements
» Stone capacity: 45kg to 160kg
» Corner-type stainless steel casing
» Heat reflector included
» Optional heater guard

Inquire

Specifications

Technical Data

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg) w/o Stone Spacer	Stones (kg) with Stone Spacer	Minimum Safety Distances A \| B
DRFT3-35NS-CNR-P-C	3.5	3 – 6	300 x 300 x 1410	70	45	100	1900
DRFT3-45NS-CNR-P-C	4.5	3 – 6	300 x 300 x 1410	70	45	100	1900
DRFT3-60NS-CNR-P-C	6.0	5 – 8	300 x 300 x 1410	70	45	100	1900
DRFT6-80NS-CNR-P-C	8.0	7 – 14	410 x 410 x 1430	160	80	100	1900
DRFT6-90NS-CNR-P-C	9.0	8 – 15	410 x 410 x 1430	160	80	100	1900
DRFT6-105NS-CNR-P	10.5	9 – 16	410 x 410 x 1430	160	80	100	1900
DRFT6-120NS-CNR-P	12.0	11 – 18	410 x 410 x 1430	160	80	100	2100
